Rectangular SS Rod 904L 316L 304 Stainless Steel Solid Square Bar
Product Descripition
Stainless steel square bar is a kind of steel material with good
corrosion resistance, heat resistance, low temperature strength and
mechanical properties.
Specification and material of stainless steel square bar
Material: 304, 304L, 321, 316, 316L, 310S, 630, 1Cr13, 2Cr13,
3Cr13, 1Cr17Ni2, dual phase steel, antibacterial steel and other
materials!
304 (18Cr-8Ni) material: as a widely used steel, it has good
corrosion resistance, heat resistance, low temperature strength and
mechanical properties; Stamping, bending and other hot workability
are good, and there is no heat treatment hardening phenomenon (if
there is no magnetism, use the temperature range of - 196 ℃ ~ 800
℃). Uses: household products (Class 1 and 2 tableware, cabinets,
indoor pipelines, water heaters, boilers, bathtubs), auto parts
(windshield wipers, silencers, molded products), medical
appliances, building materials, chemicals, food industry,
agriculture, ship parts.
Stainless steel grade:
200 stainless steel series: 201, 202 (chromium, nickel, manganese
austenitic stainless steel)
300 stainless steel series: 301, 302, 302HQ, 303, 304, 304L, 304f,
304HC, 316, 316L, 316F, 316s, 316Ti, 310, 310S, 314, 314l, 317,
317L, 321 (chromium, nickel austenitic stainless steel)
400 stainless steel series: 410, 420, 420J2, 430, 430F, 431
(Ferritic and martensitic stainless steel)
Note: l stands for low carbon. For example, 304L has lower carbon
content than 304. H and s represent high temperature resistance.
For example, 310S is more resistant to high temperature than 310,
and 304H is more resistant to heat than 304.
Specifications
| Grade | 301, 304, 304L, 309S, 310S, 316, 316L, 317, 317L, 321, 201, 202,
329, 347, 347H, 410, 420, 430, etc. |
| Standard | JIS AISI ASTM TUV DIN BV SUS etc. |
| Size | 3.0 x 3.0mm ~ 100 x 100mm; Length: 5.8m, 6m, or as request |
| Surface | Pickled ,Bright, Polishing, Mirror, Hairline |
| Techniques | Cold Drawn, Hot Rolled, Grinding, Forged, Centerless Grinding |
| Theoretical Weight(kg/m) | Width(mm)x Width(m) x Length(m) x 7.93 |
| Trade Terms | EXW, FOB, CFR, CIF |
| Delivery time | Shipped in 7-15 days after payment |
| Package | Standard sea-worthy package or as required |
| Seaworthy Packing | 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM |
| 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM |
| 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM |
| Chemical Properties of Frequently-used Stainless Steel Material
Grade |
| UNS | ASTM | EN | JIS | C% | Mn% | P% | S% | Si% | Cr% | Ni% | Mo% |
| S20100 | 201 | 1.4372 | SUS201 | ≤0.15 | 5.5-7.5 | ≤0.06 | ≤0.03 | ≤1.00 | 16.0-18.0 | 3.5-5.5 | - |
| S20200 | 202 | 1.4373 | SUS202 | ≤0.15 | 7.5-10.0 | ≤0.06 | ≤0.03 | ≤1.00 | 17.0-19.0 | 4.0-6.0 | - |
| S30100 | 301 | 1.4319 | SUS301 | ≤0.15 | ≤2.00 | ≤0.045 | ≤0.03 | ≤1.00 | 16.0-18.0 | 6.0-8.0 | - |
| S30400 | 304 | 1.4301 | SUS304 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 18.0-20.0 | 8.0-10.5 | - |
| S30403 | 304L | 1.4306 | SUS304L | ≤0.03 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 18.0-20.0 | 8.0-12.0 | - |
| S30908 | 309S | 1.4833 | SUS309S | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 22.0-24.0 | 12.0-15.0 |

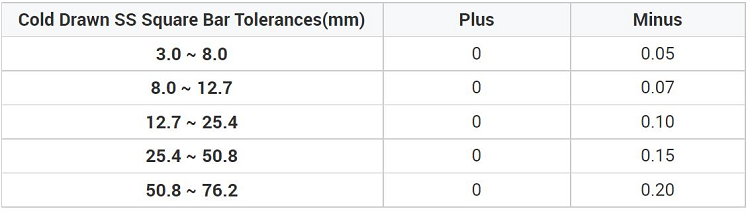

Tolerance Of Stainless Steel Cold Drawn Square Bar
Tolerance Of Stainless Steel Hot Rolled Square Bar
Our Advantages
Packing & Delivery
`
